SAFEBUS®

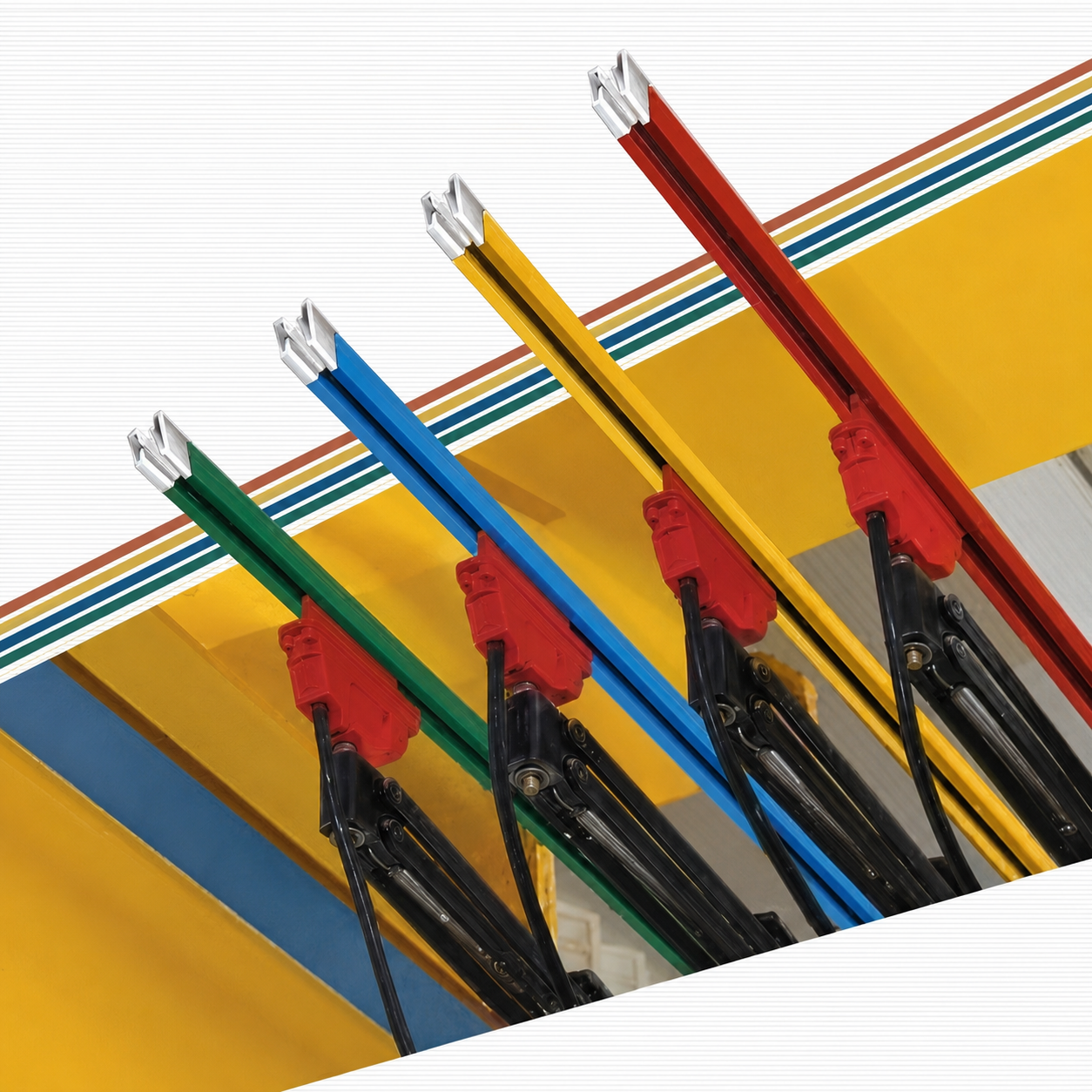

Shrouded Bus Bar System

The IEPSAFEBUS® Shrouded Busbar System is an advanced enclosed conductor rail system for the efficient transfer of electrical power. Ranging from EOT cranes, gantry cranes, hoists, monorails, transfer cars, conveyors, to material handling systems, our system handles all of these in India.

We developed high-conductivity copper conductors housed in an insulated enclosure. The system ensures the supply of constant electrical power to the systems. At the same time provides utmost safety to the operators. Available in ratings from 125A to 1000A.

Request a Quote → View Gallery

Current Ratings

125A 500A 1000A
Touch-Proof Insulated

The IEP SAFEBUS® Shrouded Busbar System is a high-performance enclosed conductor rail system designed for safe and reliable power transmission to EOT cranes, gantry cranes, hoists, monorails, transfer cars, conveyors, and automated material handling equipment. Engineered with high-conductivity copper conductors enclosed within a durable insulating housing, the system provides continuous electrical power while ensuring maximum operator safety. As a leading Shrouded Busbar Manufacturer in India, International Engineering Plant (IEP) offers SAFEBUS® systems for current ratings ranging from 125 Amps to 1000 Amps, suitable for steel plants, warehouses, ports, shipyards, manufacturing facilities, and heavy engineering industries.

Bolt Jointed Type Busbar

Galvanize

80A to 125A

SAFEBUS/GI 80 to SAFEBUS/GI 125
Copper

125A to 500A

SAFEBUS/CU 125 to SAFEBUS/CU 500
Aluminum

200A to 1000A

SAFEBUS/AI 200 to SAFEBUS/AI 1000

Pin Jointed Type Busbar

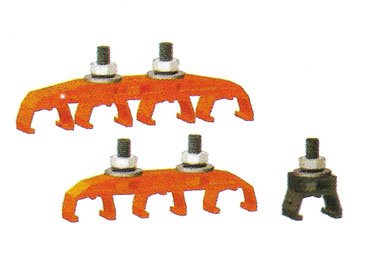

Hanger Clamp
Hanger Clamp

Single Pole & 4 Pole options

Request Info
Center Power Feed
Center Power Feed

Multiple feed points to reduce voltage drop

Request Info
Conductor Joint Cover
Conductor Joint Cover

Required on each conductor joint

Request Info
Technical Specs

Conductor Bar Specifications

Material Galvanized Steel Copper
80A 100A 125A 160A 250A 400A
Current Rating At +35°C CDF 100% 80A100A125A 160A250A400A
Current Rating At +35°C CDF 40% 100A140A200A 300A360A580A
Cross Sectional Area mm² 56 (0.8)68 (1.0)105 (1.6) 56 (0.8)68 (1.0)105 (1.6)
Max. System Voltage 500V AC / 600V DC 500V AC / 600V DC 500V AC / 600V DC 500V AC / 600V DC 500V AC / 600V DC 500V AC / 600V DC
Coefficient of Expansion 0.0000122 0.0000122 0.0000122 0.0000162 0.0000162 0.0000162
Impedance (Ohms/M) 0.00300.00290.0018 0.00350.00300.0018
Resistance (Ohms/M) 0.00280.00240.0020 0.00310.00280.0016
Standard Length 4.5 Mtr4.5 Mtr4.5 Mtr 4.5 Mtr4.5 Mtr4.5 Mtr

SAFEBUS® Shrouded Bus Bar System

Touch-safe, insulated conductor rails for cranes and material handling. Available 125A to 1000A.
